Product categories稱重傳感器_測力傳感器
一 Features 主要特點
Alloy steel material, cylindrical structure
Wide range, strong anti overload abilityWidely used plug and pull tester, rivet machine, welding machine, cold hot press machine, keyboard button touch tester, etc.
Tension testing equipment and automation equipment field and testing area.
不銹鋼材質、圓柱式結構
量程范圍廣、抗過載能力強廣泛應用插拔力測試儀、鉚釘機、焊接機、冷熱壓貼膜機、鍵盤按鈕手感度測試儀等
拉壓力測試儀器以及自動化設備領域和測試領域
二、Capacities 量程
0.2KN~10KN、20~200KN
三、Specification 技術參數
|
Rated Output |
額定輸出 |
2.0mV/V ±0.1% |
|
Zero Balance |
零點平衡 |
±1% of rated output |
|
Creep after 30 minutes |
蠕變 |
±0.3% of rated output |
|
Nonlinearity |
非線性 |
±0.3% of rated output |
|
Repeatability |
重復性 |
±0.3% of rated output |
|
Temp. effect on output |
靈敏度溫漂 |
≤0.03% of applied output/oC |
|
Temp. effect on zero |
零點溫漂 |
≤0.03% of applied output/oC |
|
Safe Temp. Range |
可用溫度范圍 |
-10oC to + 70oC |
|
Temp. Compensated |
溫度補償范圍 |
-10oC to + 40oC |
|
Safe Overload |
安全載荷 |
150% |
|
Input Impedance |
輸入阻抗 |
387 ohm ± 20 ohm |
|
Output Impedance |
輸出阻抗 |
350 ohm ± 5 ohm |
|
Rated Excitation |
推薦激勵電壓 |
10V DC/AC |
|
Maximum Excitation |
較大激勵電壓 |
15V DC/AC |

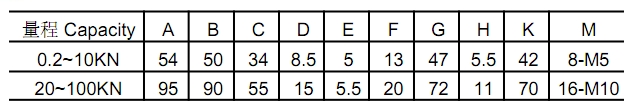

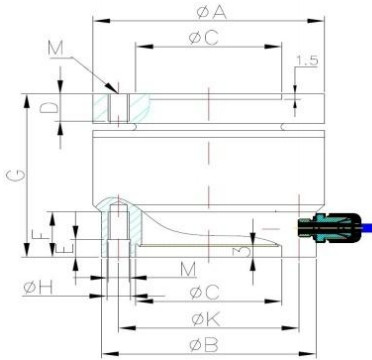

四、Dimensions 尺寸
