Product categories稱重傳感器_測力傳感器
一、Features 主要特點
Compact, easy to install
High measuring accuracy, is the preferred type of small range pull pressure sensor
Suitable for tension measurements, batching systems, industrial scales and package systems, etc
外形小巧，安裝簡便
測量精度高，是小量程拉壓力測試傳感器的優選型號
適用于材料試驗機、配料秤、機電結合稱和包裝秤等
二、Capacities 量程
1kg、2kg、3kg、5kg、10kg、20kg、30kg、50kg、100kg
三、Specification 技術參數
Rated Output
額定輸出
1.0mV/V ±0.1%
Zero Balance
零點平衡
±1% of rated output
Creep after 30 minutes
蠕變
±0.1% of rated output
Nonlinearity
非線性
±0.1% of rated output
Hysteresis
滯后
±0.1% of rated output
Repeatability
重復性
±0.1% of rated output
Temp. effect on output
靈敏度溫漂
≤0.02% of applied output/oC
Temp. effect on zero
零點溫漂
≤0.02% of applied output/oC
Safe Temp. Range
可用溫度范圍
-10oC to + 70oC
Temp. Compensated
溫度補償范圍
-10oC to + 40oC
Safe Overload
安全載荷
150%
Input Impedance
輸入阻抗
387 ohm ± 20 ohm
Output Impedance
輸出阻抗
350 ohm ± 5 ohm
Rated Excitation
推薦激勵電壓
10V DC/AC
Maximum Excitation
較大激勵電壓
15V DC/AC

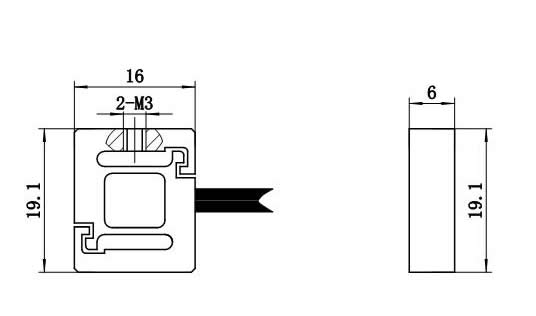

四、Dimensions 尺寸
